Steam Wand Blocked? Pin Tool Trick & Soaking Method

A blocked steam wand is one of the most common Breville issues—and thankfully, one of the easiest to fix. Milk residue accumulates in the tiny steam tip holes, gradually reducing pressure until you’re left with weak, sputtering steam that can’t froth milk properly.

Here’s how to clear blockages quickly and prevent them from returning.

Why Your Steam Wand Gets Blocked

The Culprit: Dried Milk Residue

Every time you steam milk, tiny amounts enter the steam tip holes. If not purged immediately, this milk dries inside the holes, creating:

1. Mineral deposits from the milk
2. Protein buildup that hardens
3. Bacterial growth in severe cases

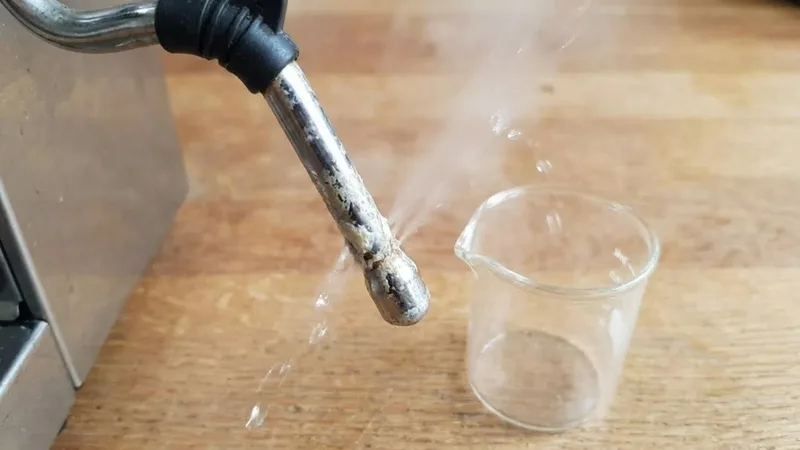

Signs of a Blocked Steam Wand

Symptom	Severity
Slightly weaker steam	Mild blockage
Sputtering, uneven steam	Moderate blockage
Steam barely flows	Severe blockage
No steam at all	Complete blockage

Tools You’ll Need

For Quick Clearing

• Pin tool (included with your Breville)
• Damp cloth for wiping

For Deep Cleaning

• Milk system cleaner or espresso machine cleaner
• Small container for soaking
• Hot water
• The pin tool

The Pin Tool Trick (Quick Fix)

This works for mild to moderate blockages:

Step 1: Purge the Wand

1. Turn on steam briefly
2. Let it run for 3-5 seconds
3. Turn off steam

This clears any loose debris and softens dried milk.

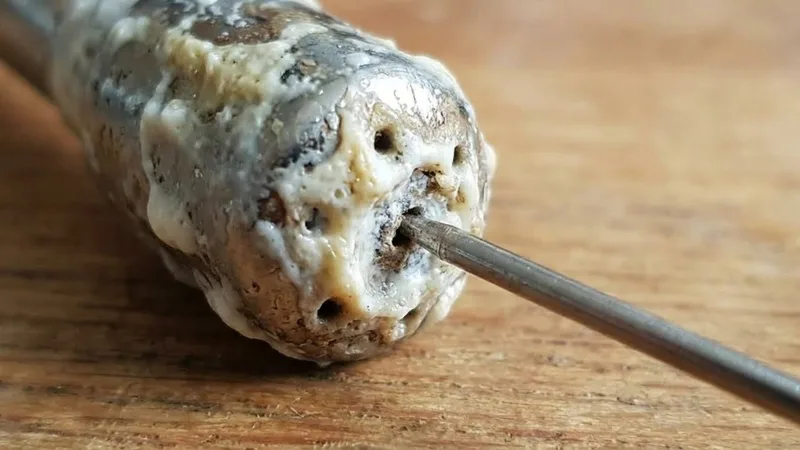

Step 2: Insert the Pin

1. Locate your Breville pin tool (thin metal wire)
2. With steam off, insert pin into each steam tip hole
3. Push gently—don’t force
4. Move the pin in and out to break up deposits

Pro tip: Your Breville steam tip usually has 3-4 holes. Clear each one.

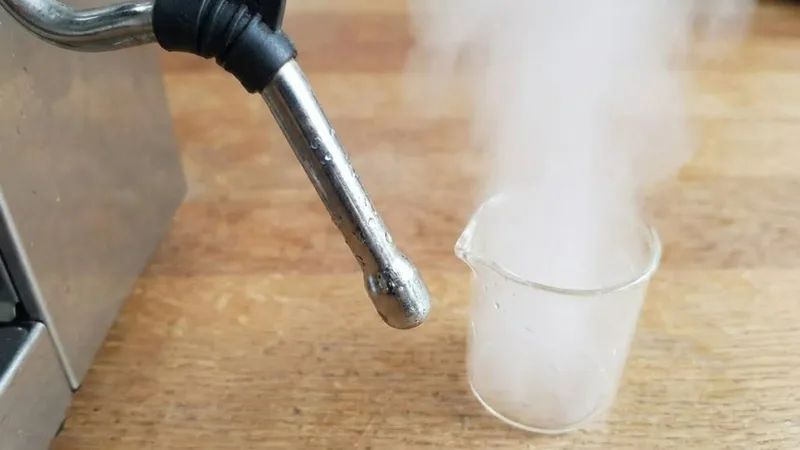

Step 3: Purge Again

1. Turn steam back on
2. Run for 5-10 seconds
3. Watch for improved flow

Repeat if needed: If still blocked, repeat steps 2-3. Stubborn blockages may need multiple passes.

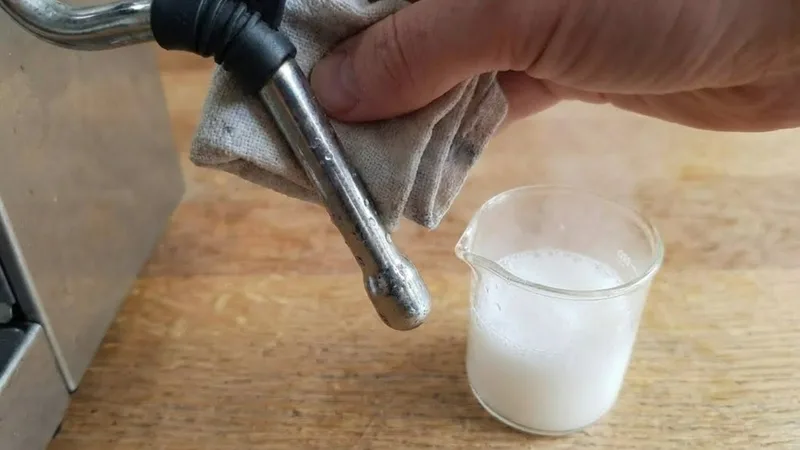

Step 4: Wipe Clean

1. Purge briefly
2. Immediately wipe the entire wand with a damp cloth
3. Ensure no residue remains on the exterior

Soaking Method (Deep Clean)

For severe blockages that the pin tool can’t clear:

When to Soak

• Pin tool doesn’t improve flow
• Steam still sputters after pin clearing
• You haven’t cleaned in weeks
• Visible milk buildup on wand exterior

Soaking Process

Step 1: Prepare the Solution

1. Heat water to near-boiling
2. Dissolve milk system cleaner per instructions (or use 1 tablespoon espresso cleaner)
3. Pour into a small, narrow container

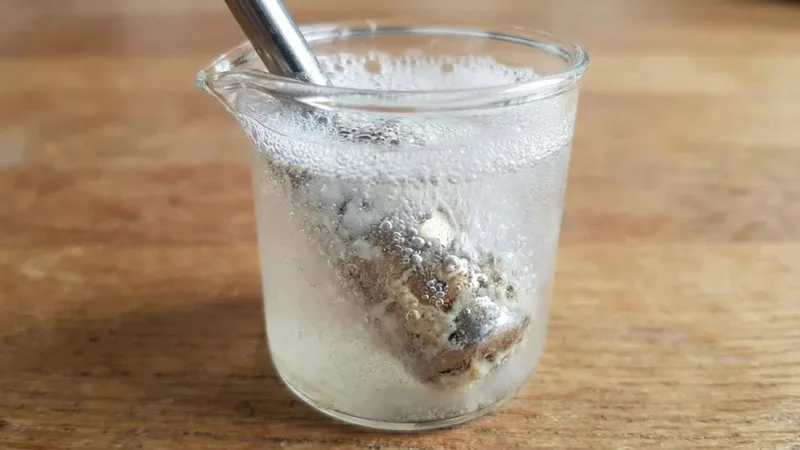

Step 2: Position the Wand

1. Turn machine on but don’t engage steam
2. Lower steam wand into the solution
3. Steam tip should be fully submerged

Step 3: Soak Duration

• Moderate blockage: 15-20 minutes
• Severe blockage: 30 minutes or overnight

Step 4: Purge Steam Into Solution

1. Turn on steam briefly (5 seconds)
2. The solution will bubble and fizz
3. Turn off steam
4. Repeat 2-3 times during soak

Step 5: Final Rinse

1. Remove wand from solution
2. Submerge in fresh clean water
3. Purge steam to flush cleaning solution
4. Repeat until water runs clear

Step 6: Clear with Pin Tool

1. After soaking, the softened deposits clear easily
2. Use pin tool on each hole
3. Final purge to test flow

Prevention: Daily and Weekly Maintenance

After Every Use (Essential)

1. Purge immediately after removing from milk (2-3 seconds)
2. Wipe with damp cloth while still warm
3. Never leave milk on the wand—even for a minute

Weekly Maintenance

1. Soak in water for 5-10 minutes
2. Quick pin tool pass on each hole
3. Purge and wipe

Monthly Deep Clean

1. Full soak in cleaning solution (15-20 minutes)
2. Pin tool all holes
3. Thorough rinse

Troubleshooting Persistent Blockages

Blockage Returns Quickly

Cause: Incomplete cleaning or not purging after each use

Fix: Reset your habit—purge and wipe every single time, no exceptions

One Hole Still Blocked

Cause: Stubborn mineral deposit

Fix:

• Try soaking overnight
• Use a slightly larger needle (careful not to damage holes)
• Consider replacing steam tip if permanently blocked

Steam Wand Leaks After Cleaning

Cause: Usually not related to cleaning—likely a worn gasket

Fix: This is a different issue. Check the steam wand valve and gasket.

No Steam At All

Cause: Could be blockage or machine issue

Fix: If soaking and pin tool don’t help, the issue may be internal. Contact Breville support or check thermostat.

Frequently Asked Questions

What causes a steam wand blocked problem?

Dried milk protein and mineral deposits inside the tiny steam tip holes. This happens when milk isn’t purged immediately after steaming.

How often should I clean my steam wand?

Purge and wipe after every use. Weekly pin tool maintenance. Monthly deep soak.

Is the pin tool safe for all espresso machines?

Yes for machines with removable or standard steam tips. Use the appropriate size—Breville includes the correct one. Never force.

Can vinegar unclog a steam wand?

Technically yes, but not recommended. Vinegar can damage internal components and leave residue that affects milk taste. Use proper espresso machine cleaner.

Why use filtered water for steam wand care?

Filtered water reduces mineral deposits in the boiler and steam system. Fewer minerals = slower blockage buildup.

---
