Steam Wand Basics: Purging and Positioning for Vortex

Mastering your espresso machine’s steam wand is essential for creating silky microfoam and maintaining your equipment’s longevity. The foundation of great milk steaming begins with understanding two critical habits: purging your wand and positioning it correctly to create the ideal vortex.

These techniques work together to remove condensate, eliminate milk residue, and ensure consistent steam pressure—all necessary for producing professional-quality textured milk at home.

Why Purging Your Steam Wand Matters

Purging is a simple but crucial step that should happen before and after every milk steaming session. When you purge, you send a brief blast of steam through the wand to clear any water condensation and milk residue that accumulates inside.

Benefits of Purging

1. Removes condensation that affects steam quality
2. Prevents milk buildup inside the wand
3. Maintains consistent steam pressure for better microfoam
4. Extends equipment life by preventing residue accumulation

The accumulation of milk residue inside your steam wand becomes problematic over time. Each time you steam milk, a pressure change pulls a tiny bit of that milk back into the wand. That residue can eventually turn rancid, decreasing steam power and affecting drink taste.

The Purging Routine

Your purging routine should be consistent and quick.

Before Steaming

1. Open the steam valve for 2-3 seconds
2. Release any condensation into a drip tray or cloth
3. Wait for consistent, dry steam
4. Close the valve

After Steaming

1. Immediately open the steam valve
2. Purge for 2-3 seconds
3. Wipe the wand with a damp cloth
4. Purge briefly again to clear any residue

Pro Tip: Never let milk dry on the steam wand. Clean within 10 seconds of finishing.

Positioning for the Perfect Vortex

The vortex is the key to creating microfoam. It’s a spinning motion in the milk that:

• Incorporates air evenly
• Breaks up large bubbles into tiny ones
• Creates consistent texture throughout

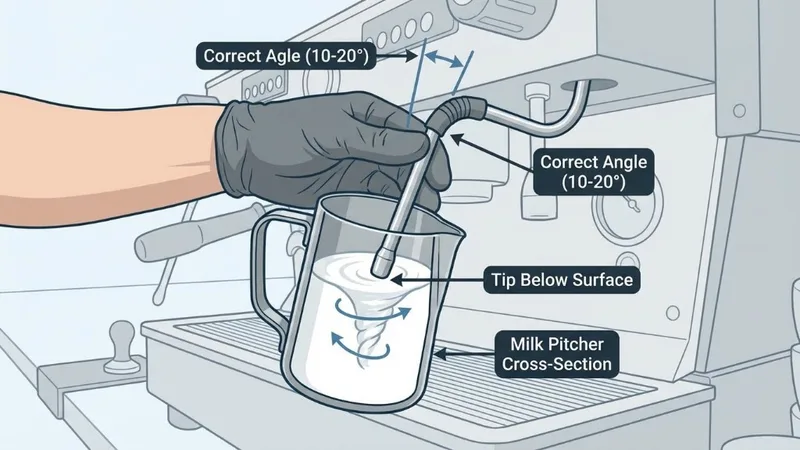

Finding the Right Position

Step 1: Start Position

• Place the steam tip approximately 0.5-1 cm below the milk surface
• Position off-center, angled toward one side of the pitcher
• The angle creates the spinning motion

Step 2: Angle the Pitcher

• Tilt the pitcher slightly (about 15-20 degrees)
• This helps establish the vortex
• The tip should be near the edge, not center

Creating the Vortex

1. Open steam valve fully for maximum power
2. Listen for the “paper tearing” sound — this means air is incorporating
3. Lower the pitcher slightly as foam rises
4. Keep the tip just below the surface
5. Watch for spinning motion — the milk should rotate

The Two Phases of Steaming

Phase 1: Stretching (Air Incorporation)

• Tip at or just below surface
• “Paper tearing” sound
• Milk volume increases
• Lasts 3-5 seconds for latte
• Longer for cappuccino (more foam)

Phase 2: Texturing (Polishing)

• Submerge tip deeper (1-2 cm)
• Maintain vortex without adding air
• No hissing sound — just spinning
• Breaks up bubbles into microfoam
• Continue until temperature reached

Temperature Control

Target Temperature

Drink	Target Temp
Latte	60-65°C (140-150°F)
Cappuccino	60-65°C
Flat White	55-60°C

How to Judge Temperature

Without a thermometer:

• Warm to touch: About 40°C — keep going
• Hot but holdable: About 55°C — almost there
• Too hot to hold: About 65°C — stop now

Pro Tip: Stop steaming when the pitcher becomes uncomfortable to hold. By the time you stop, residual heat adds another 5°C.

Common Mistakes to Avoid

❌ Too Deep, No Air

Problem: Tip submerged too far from start Result: Hot milk with no foam Fix: Start with tip barely under surface

❌ Too High, Too Much Air

Problem: Tip at or above surface too long Result: Large bubbles, soap-like foam Fix: Only add air for first few seconds

❌ No Vortex

Problem: Tip centered or wrong angle Result: Uneven texture, large bubbles remain Fix: Position off-center and angled

❌ Overheating

Problem: Steaming past 65°C Result: Burnt taste, thin texture Fix: Use thermometer until you develop feel

Practice Routine

To develop your technique:

1. Practice with water first — add a drop of dish soap to simulate milk behavior
2. Steam 10 pitchers in a row — develop muscle memory

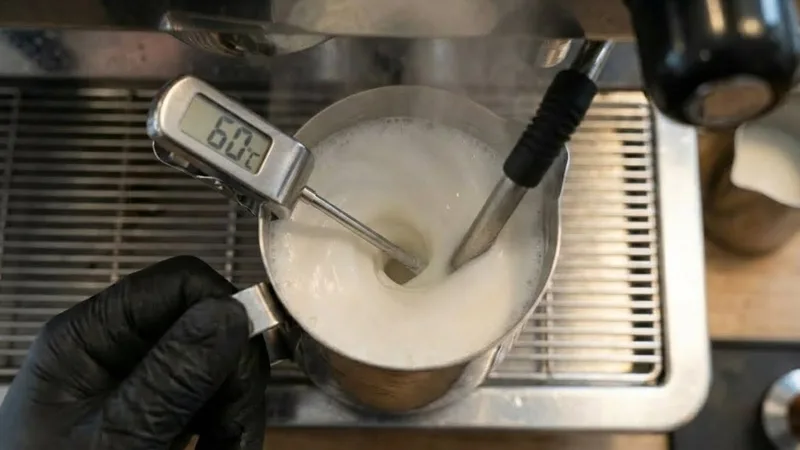

3. Use a thermometer until temperature becomes intuitive
4. Watch the milk surface — you’ll learn to read foam quality visually

Key Takeaways

• Always purge before and after steaming
• Position off-center with pitcher tilted to create vortex
• Two phases: Stretch (add air) then texture (polish foam)
• Temperature target: 60-65°C for most drinks
• Stop when too hot to hold — residual heat adds more
• Clean immediately — never let milk dry on wand

---
